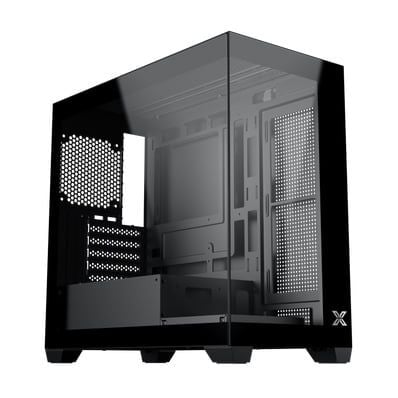

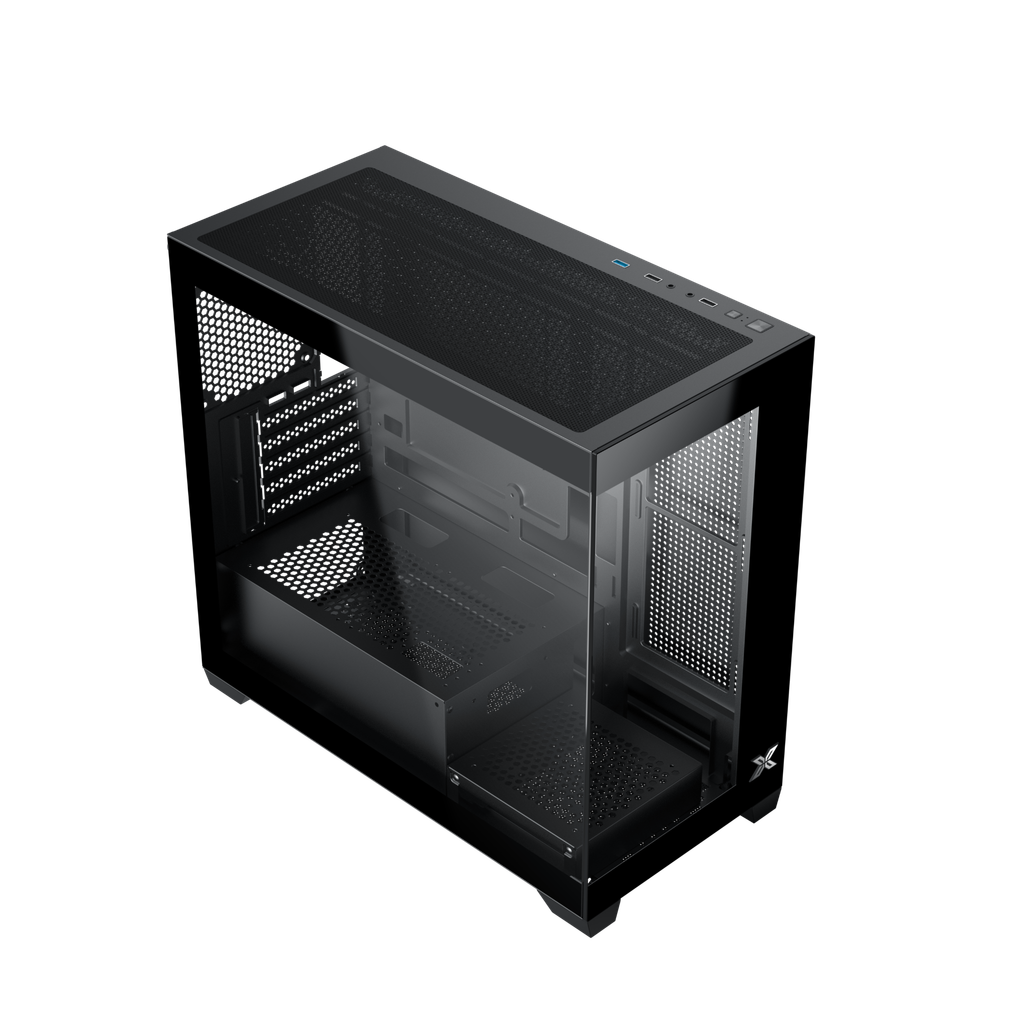

| Product Name | XIGMATEK BLAST M |
| Material | Steel |
| Dimension | 435x218x415mm (LxWxH) |
| Drive Bays | HDD Cage (Top): 2.5″ or 3.5″ x1 HDD Cage (Bottom): 3.5″ x1 |
| PCI Slot | 5 Standard Slots |
| Motherboard Support | Micro ATX (Support Back Plug) Mini ITX |
| Power Supply | Standard PS2 ATX PSU |
| Fan Support | Top: 120mm x3 or 140mm x2 MB Panel: 120mm x2 PSU Shroud: 120mm x2 Bottom: 120mm x1(No SSD or HDD) Rear: 120mm x1 |
| Liquid Cooling Support | Top: 360 (Memory Height ≤ 45mm) MB: 240 Rear: 120 |
| I/O Panel | USB 3.0 x 1 USB 2.0 x 2 HD Audio |
| CPU Cooler | 170mm |
| VGA Length | 285mm (Fan on MB Panel) 425mm (No Fan on MB Panel) |
| PSU Length | 220mm |
