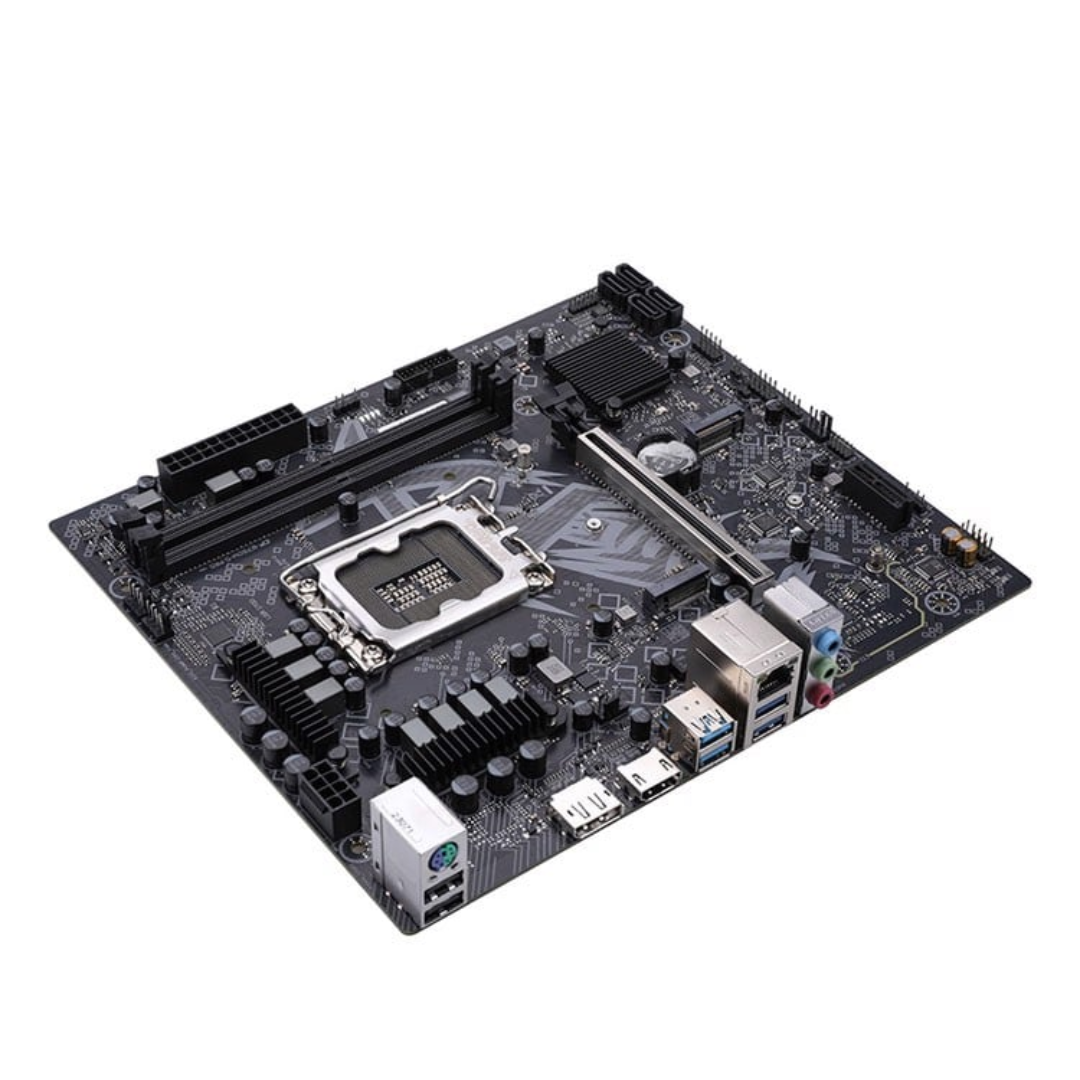

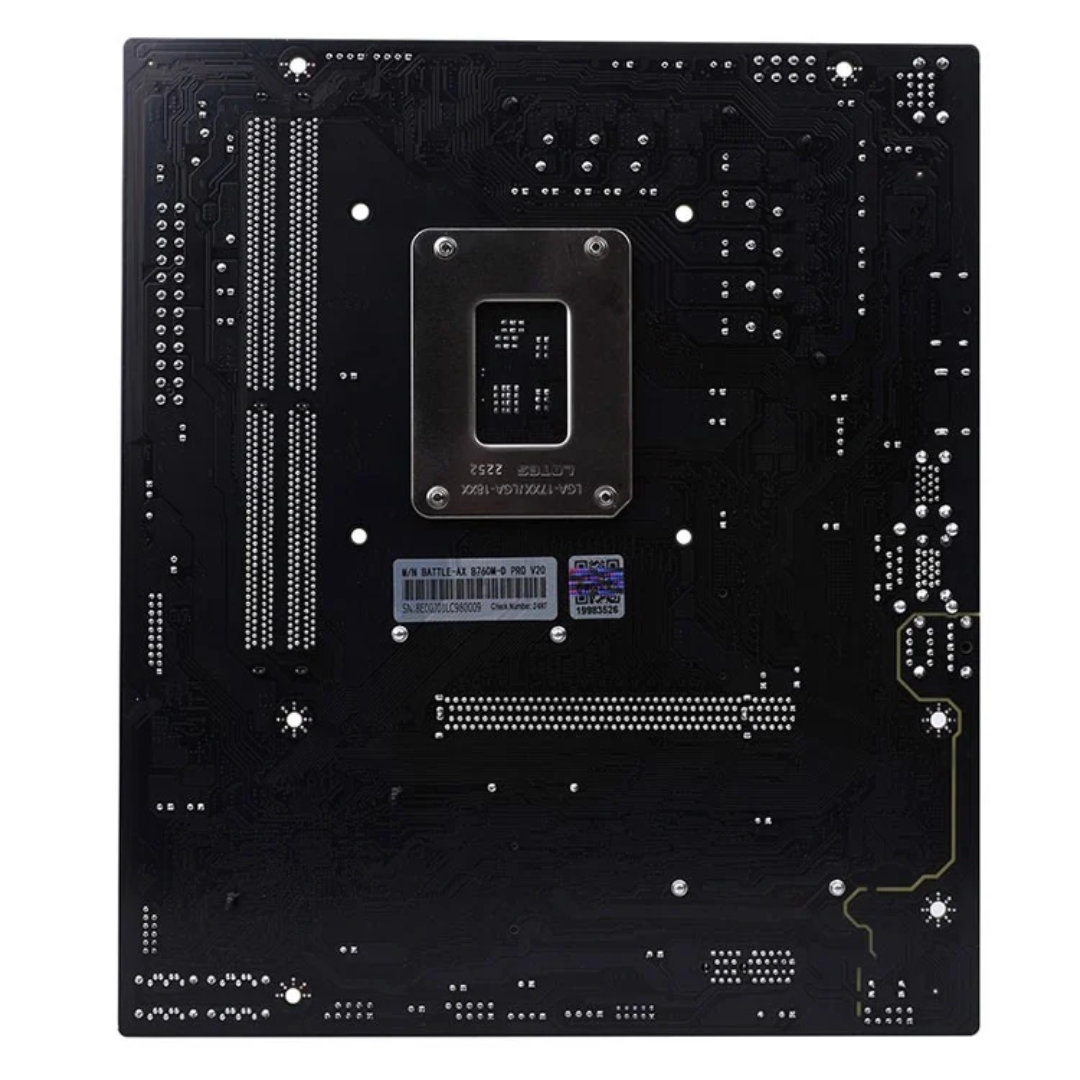

| Model | BATTLE-AX B760M-D PRO V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor |
| (* Please visit www.colorful.cn for the latest processor support list) | |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory) |
| – support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory | |
| – support Intel ® Extreme Memory Profile (XMP) memory technology | |
| – supports dual channel memory technology | |
| (* Please visit www.colorful.cn for the latest memory compatibility list) | |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
| – M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) | |
| – M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel) | |
| (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) | |

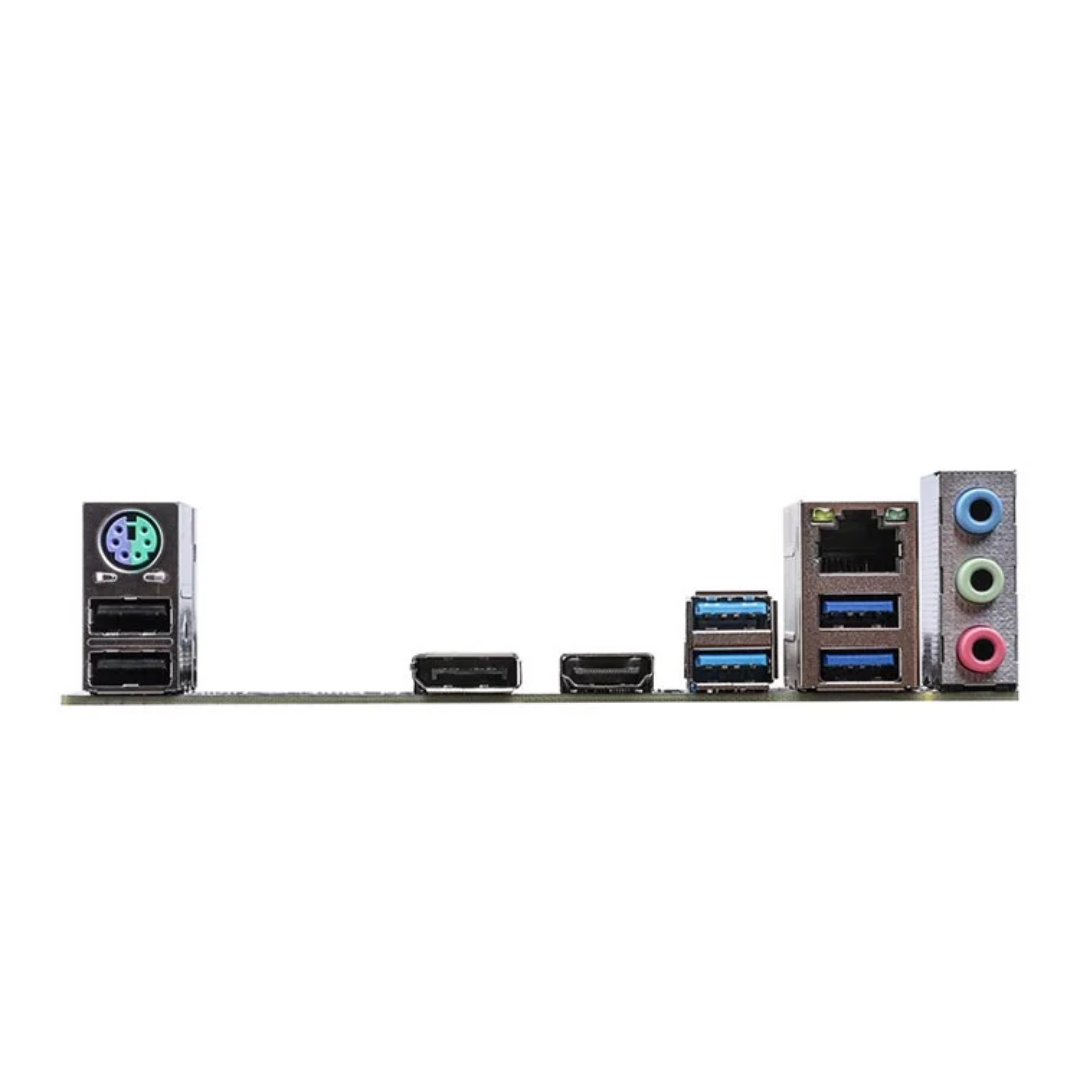

| Board I/O | Rear I/O interface: |
| – 1×PS/2 interface | |
| – 2×USB 2.0 interfaces | |
| – 4×USB 3.2 Gen 1 Type-A interfaces | |
| – 1×DP 1.2 interface, supporting up to 4K 60Hz resolution | |
| – 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution | |
| – 1×2.5G network interface | |
| – 3×audio interfaces (audio input/audio output/microphone) | |
| Onboard device interface: | |
| – 1×CPU fan pin | |
| – 2×system fan pins | |
| – 1×water cooling pump pin | |
| – 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces | |
| – 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces | |
| – 2×5V 3-pin ARGB pins | |
| – 1×front audio pin | |
| – 1×front panel pin | |
| – 1×speaker pin | |
| – 1×ME write protection jumper | |
| – 1×clear CMOS jumper | |
| – 1×BIOS burner pin | |
| – 1×POST card pin | |
| – 1×PS/2 call Wake up control jumper | |
| Expansion Slots | 1 PCIe 4.0 x16 slot |
| 1 PCIe 3.0 x1 slot | |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, regular power on and power on |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5G network card |
| Audio | 5.1 Channel sound card |
| Configuration | M-ATX |
| 240mm x 207mm |
