CHIPSET |
INTEL B760 |
|
|
CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
|
|
MEMORY |
4x DDR5, Maximum Memory Capacity 192GB |
|
|
ONBOARD GRAPHICS |
1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
|
|
EXPANSION SLOT |
1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot |
|
|
STORAGE |
M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
|
USB |

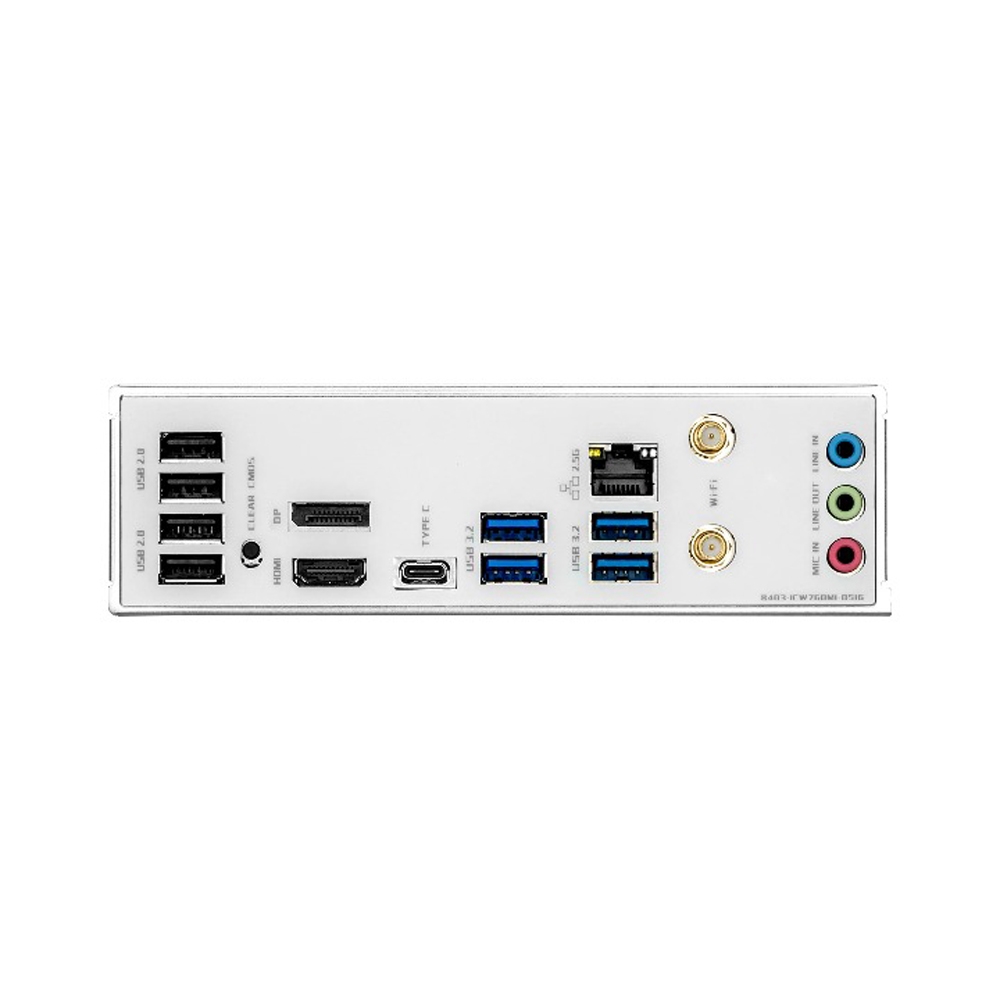

*Front USB (Total 7 ports) 1x USB 3.2 Gen1 Type C (10Gbps) 2x USB 3.2 Gen1 Type A 4x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen2 Type C (20Gbps) 4x USB 3.2 Gen1 Type A 4x USB 2.0 |
|
|
LAN |
Realtek® RTL8125BG 2.5G LAN | |
|
WIRELESS / BLUETOOTH |
Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
|
|
AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
|
INTERNAL I/O |
|
|
|
LED FEATURE |
4x Distributed Debug LED |
|
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit | |
|
FORM FACTOR |
m-ATX 245mm x 245mm |
