Thông số kỹ thuật
| Chipset | Intel H510 |
| Socket | Intel LGA 1200 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Chi tiết Vga | 1x HDMI Support HDMI™ 1.4, maximum resolution of 4K 30Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Realtek® 8111H Gigabit LAN |
| Khe cắm trong | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Khe cắm mở rộng | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |

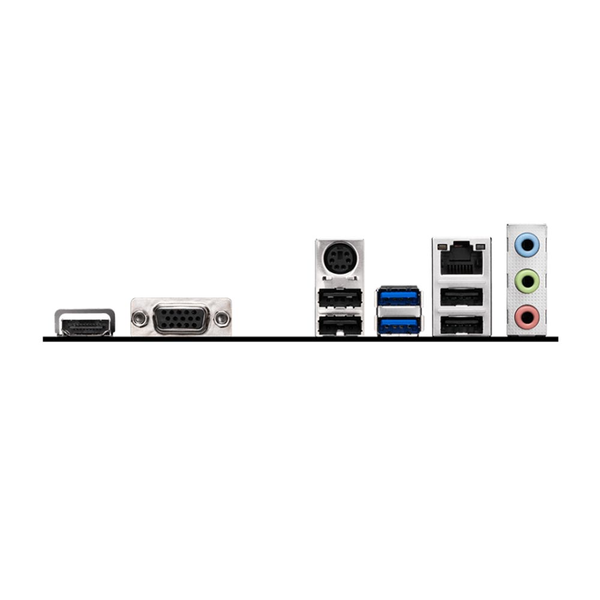

| Cổng giao tiếp ngoài | HDMI™ VGA Keyboard / Mouse USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 USB 2.0 |
| Âm thanh | 8-Channel (7.1) HD Audio with Audio Boost |
