| Hãng sản xuất |
ASUS |
| Chipset |
Intel® B760 Chipset |
| Socket |
LGA 1700 (Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors) |
| RAM |
DDR4 - 2 x DIMM slots, Max. 64GB |
| Hỗ trợ tối đa RAM |
64 GB |
| Khe cắm PCI-E |
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot |
| Kết nối |
1 x Realtek 1Gb Ethernet |
| Khe cắm M.2 |
2 |
| Âm thanh |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Cổng I/O sau |

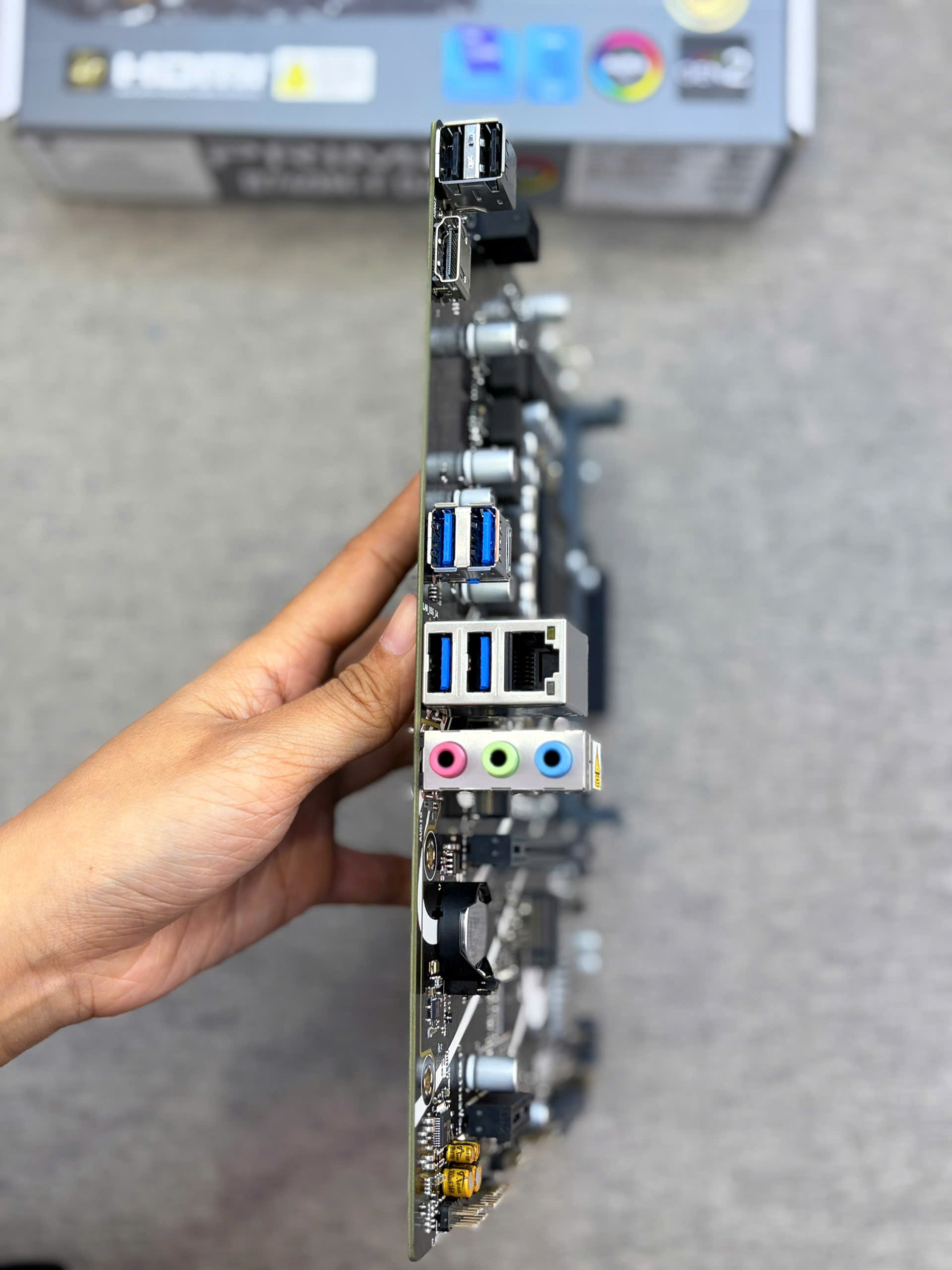

4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks |
| Cổng I/O nội bộ |
Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower Related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front panel audio header (F_AUDIO)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header |
| USB |
Rear USB (Total 6 ports)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)*Front USB (Total 5 ports)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Kích thước |
micro-ATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Trọng lượng |
- |
| Tính năng khác |
ASUS 5X PROTECTION III ASUS Q-DESIGN ASUS Thermal Solution ASUS EZ DIY AURA SYNC |
| Tương thích |
Windows® 11, Windows® 10 64-bit |
