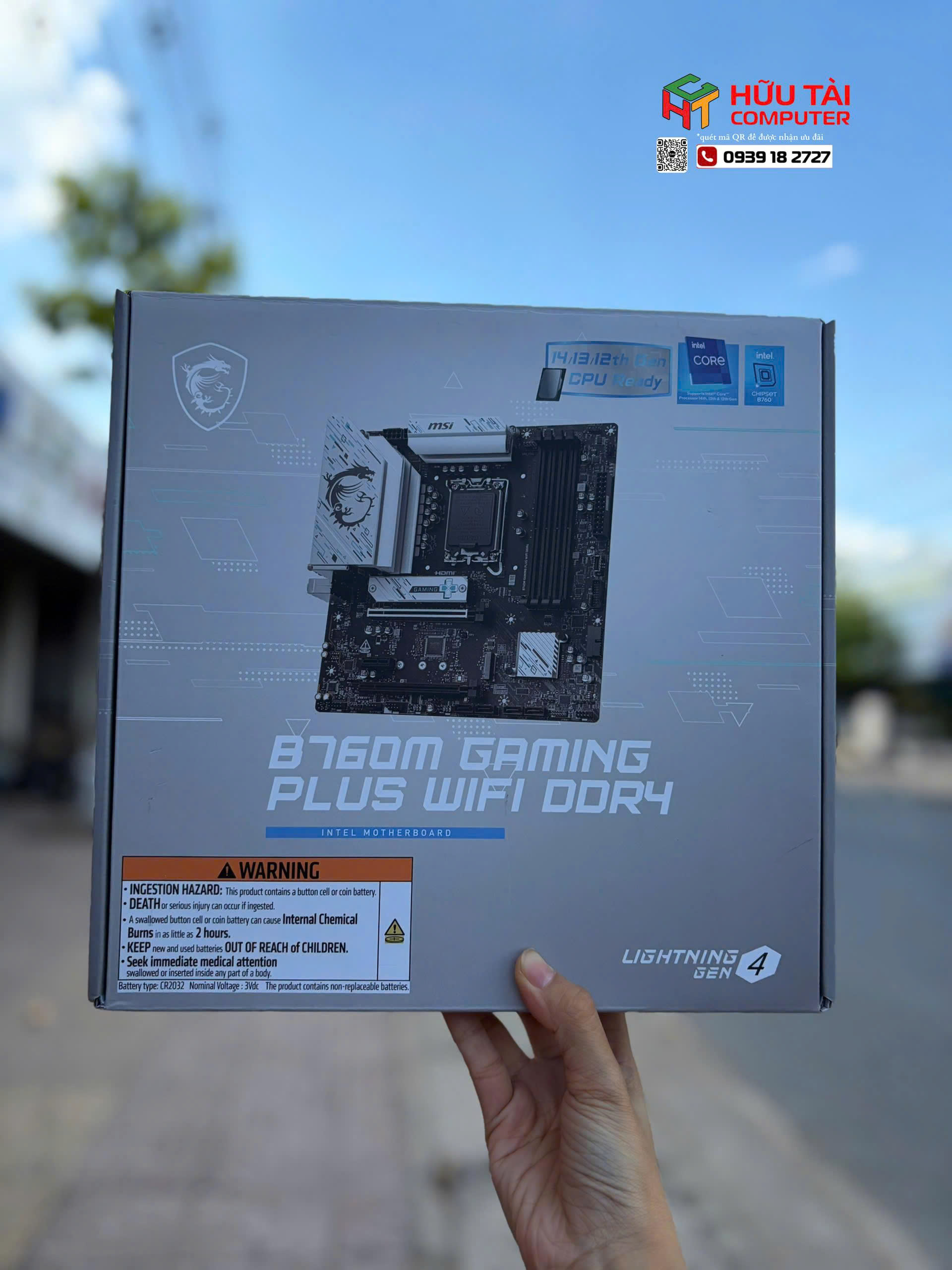

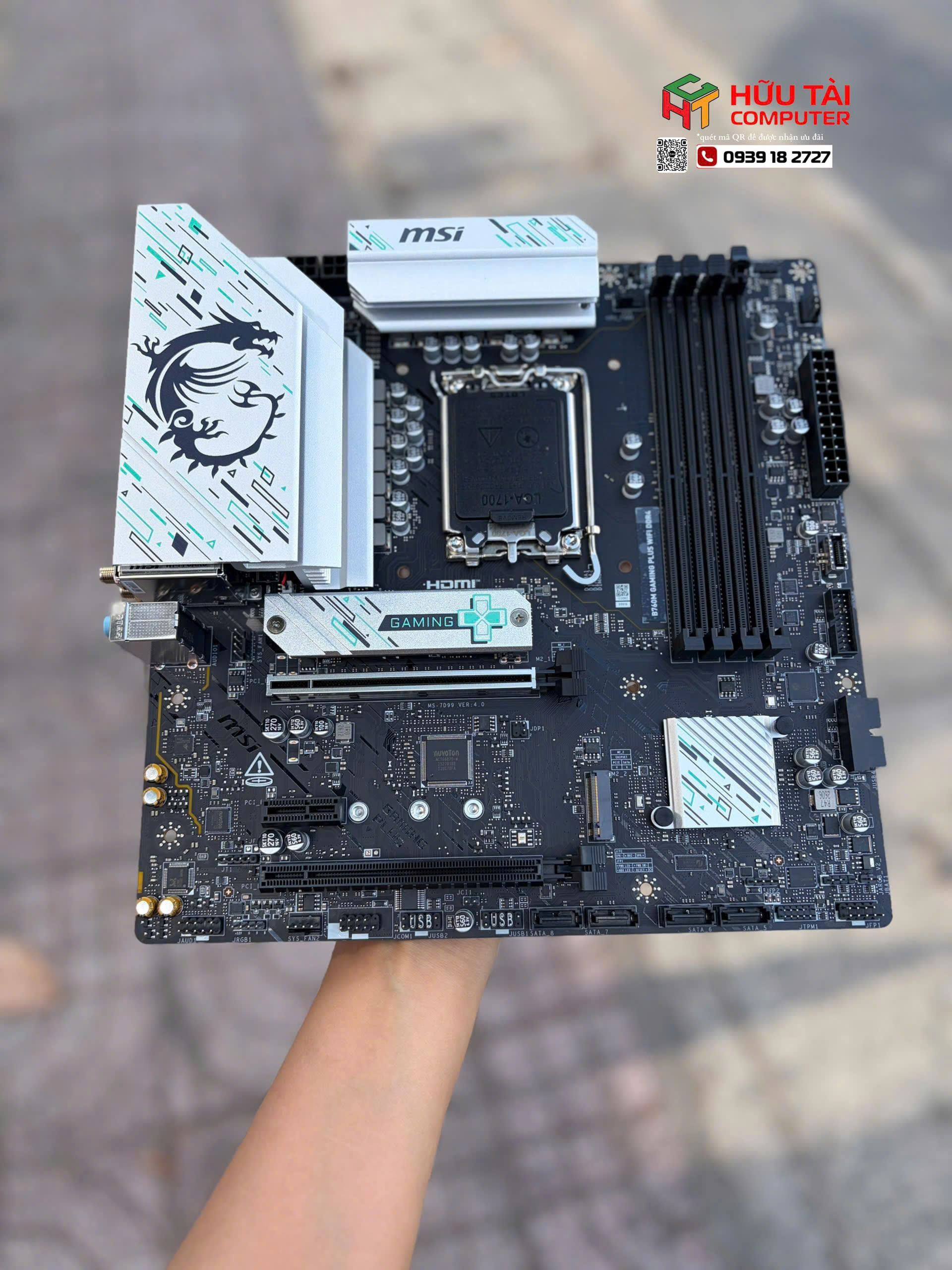

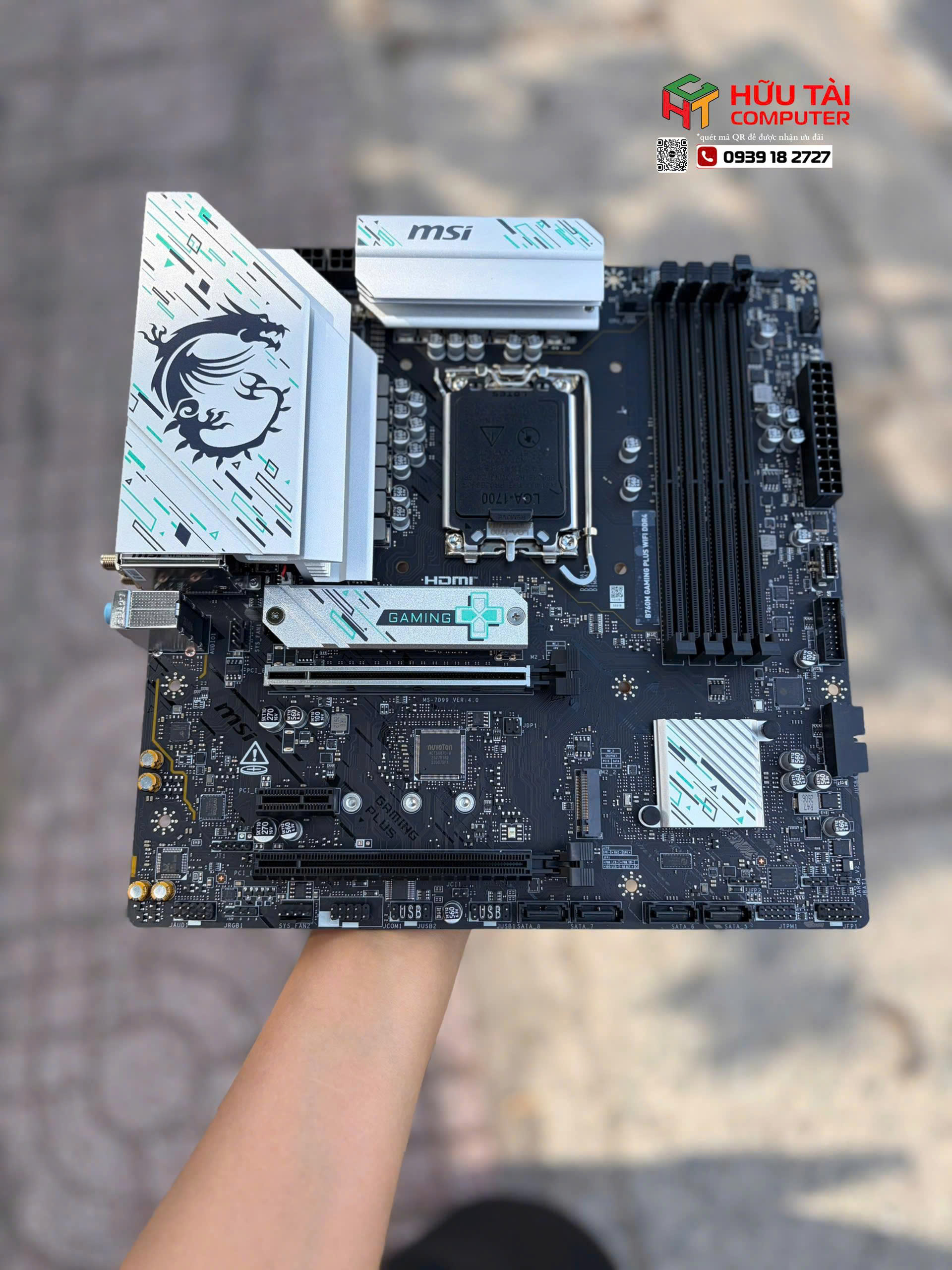

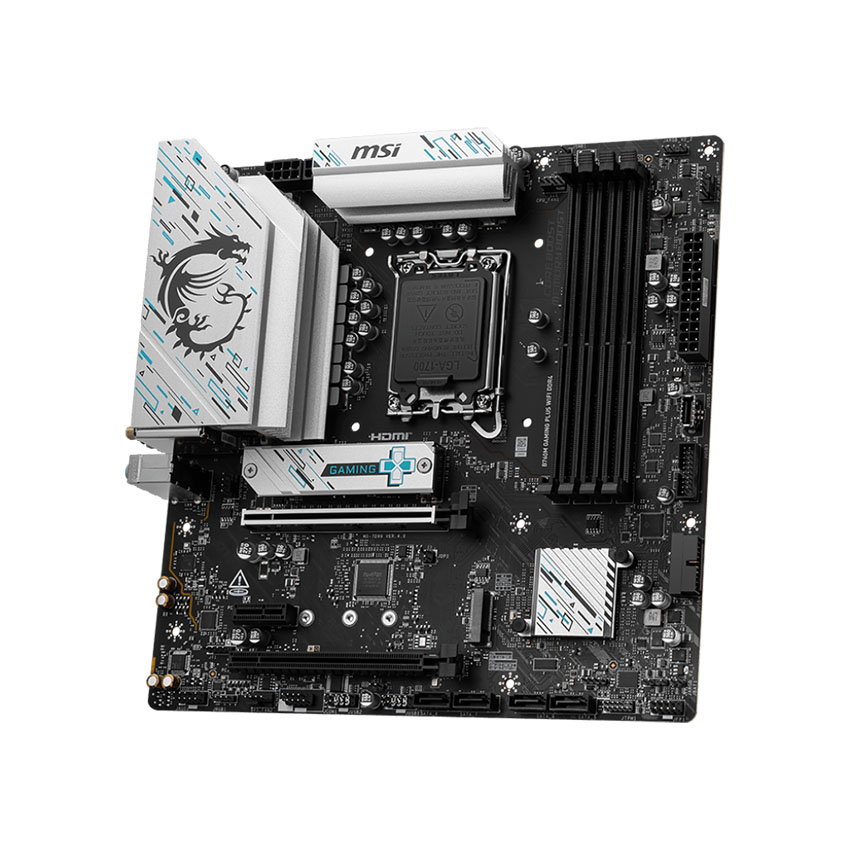

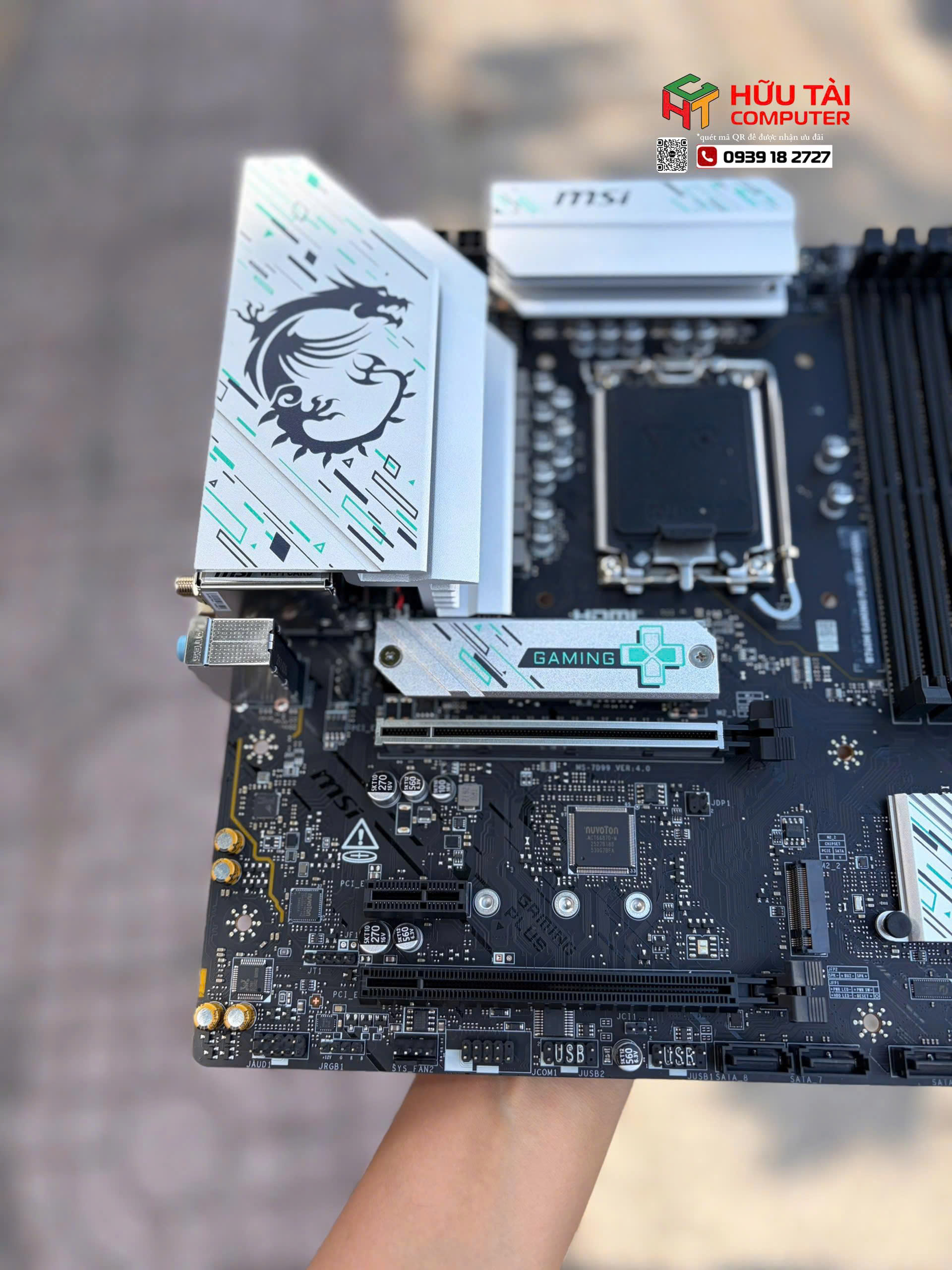

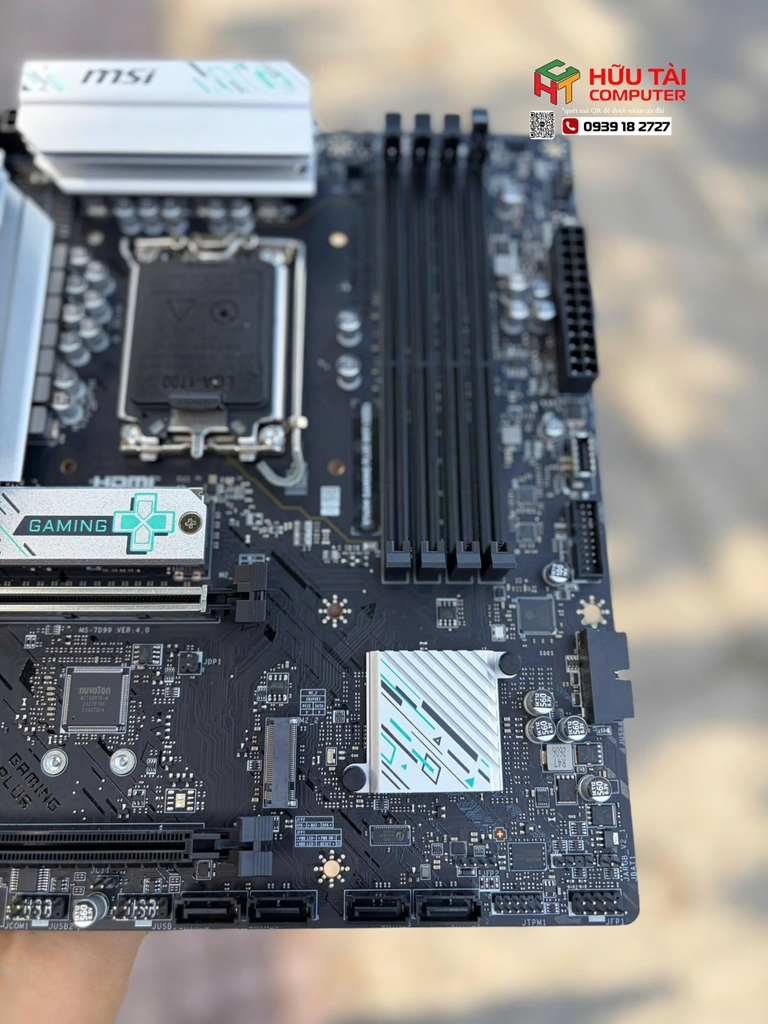

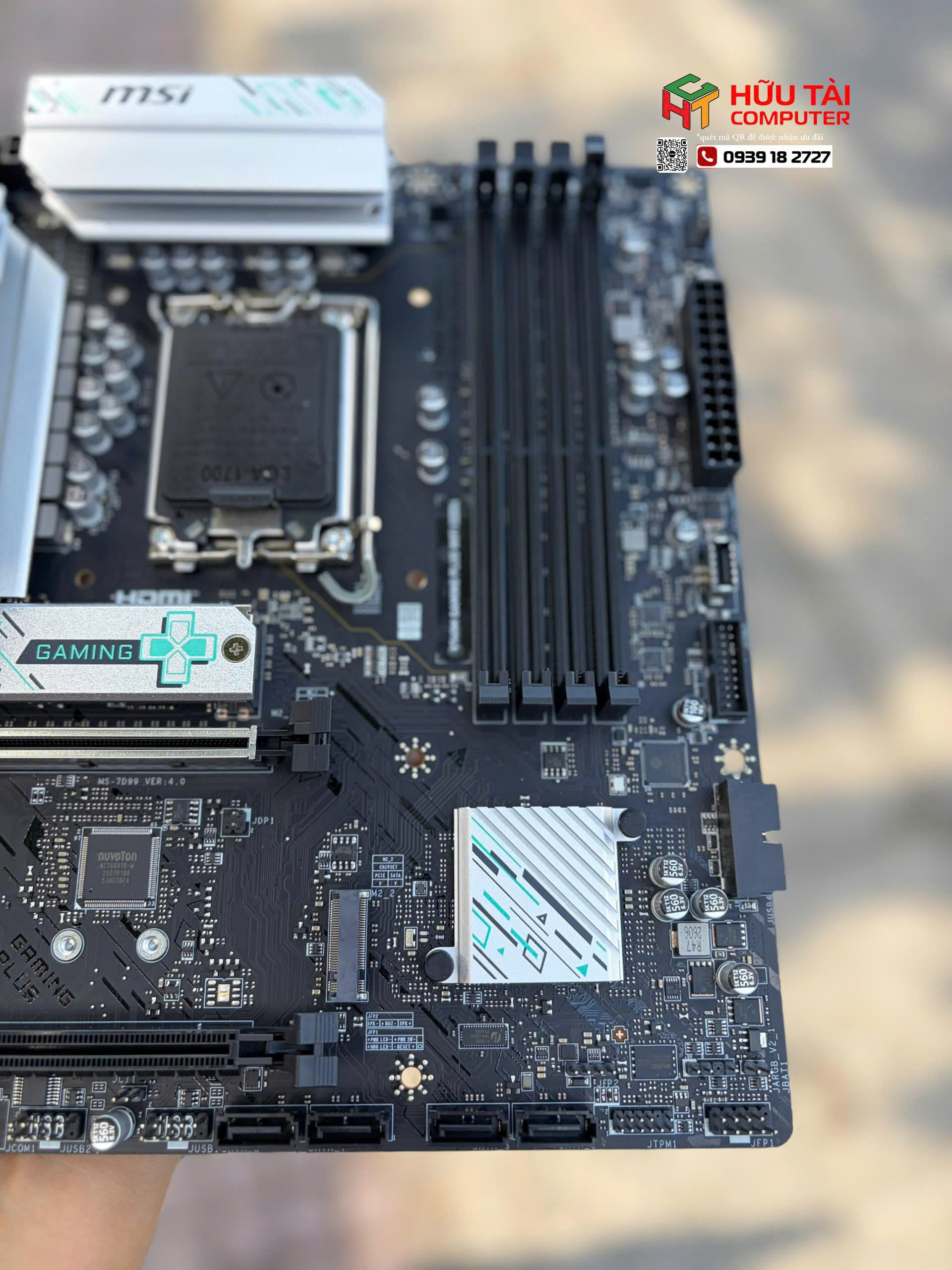

Mainboard MSI B760M GAMING PLUS WIFI DDR4
| Chipset | Intel B760 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Card đồ họa | 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Khe cắm trong | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Khe cắm mở rộng | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |

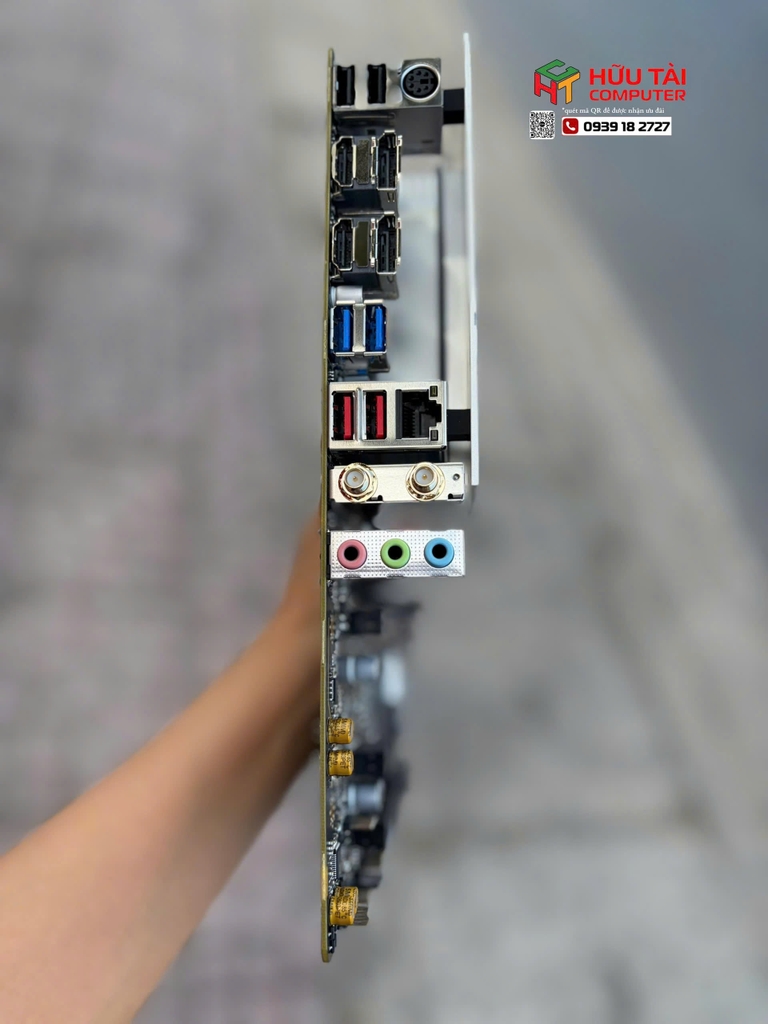

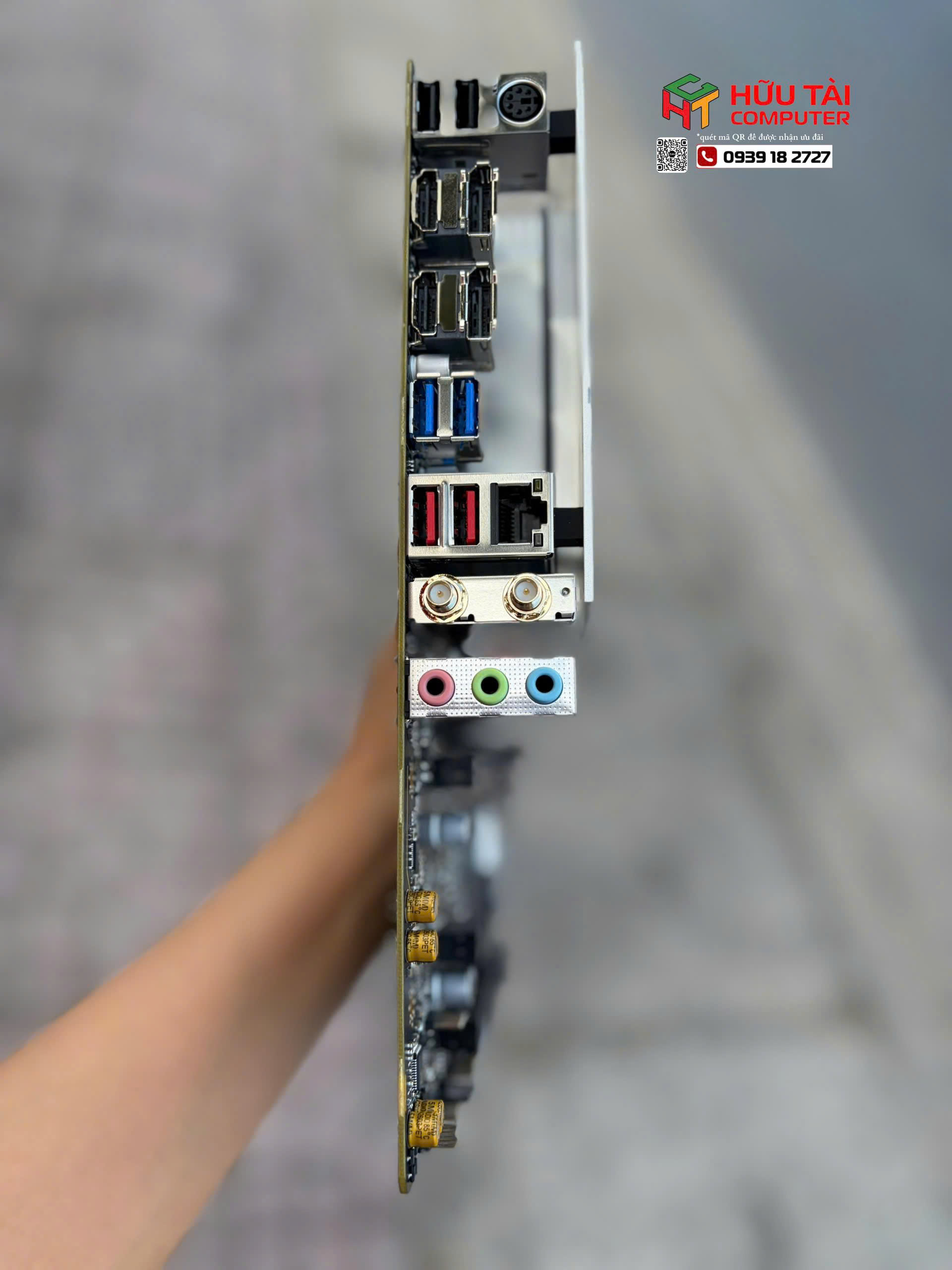

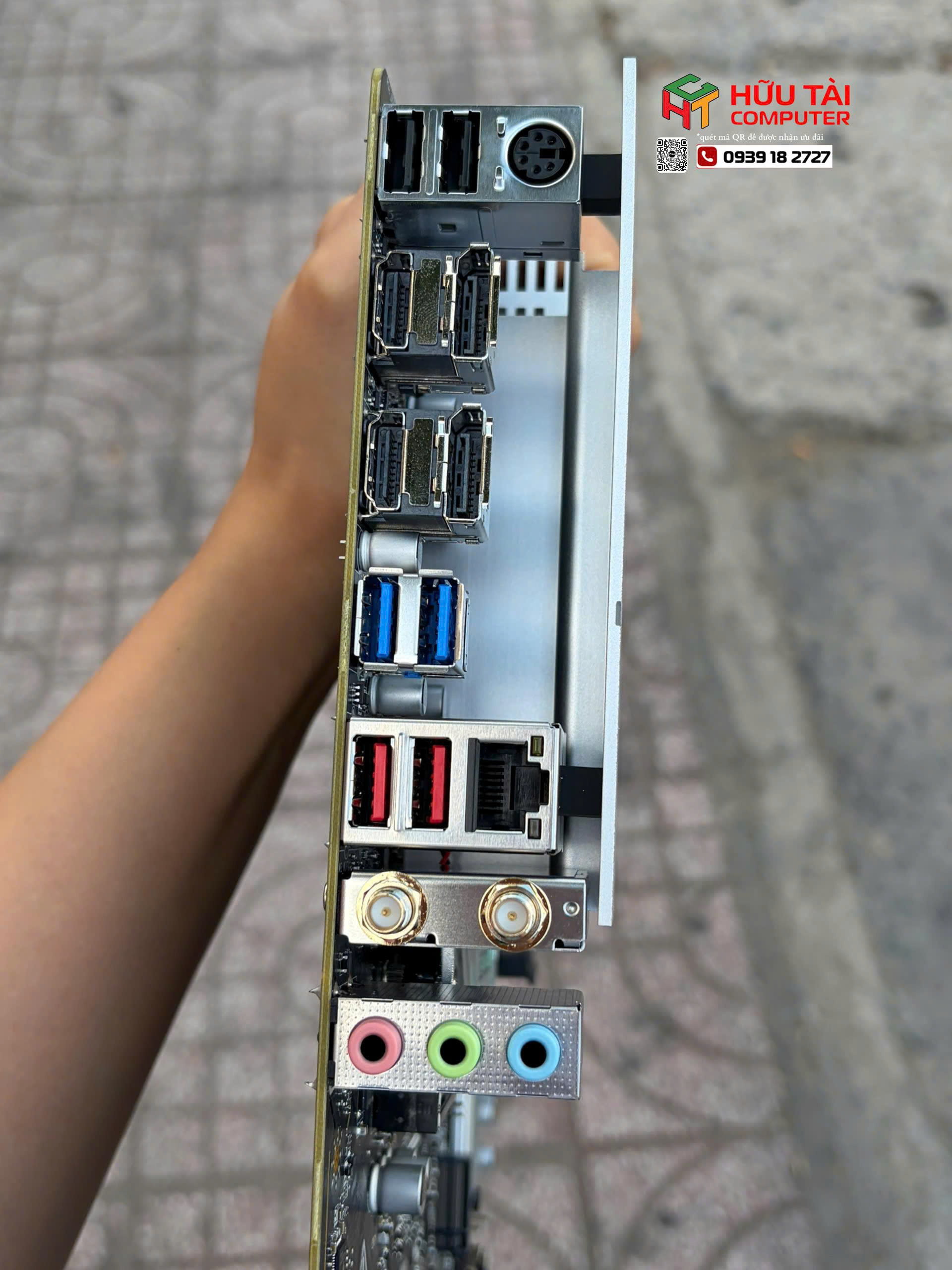

| Cổng giao tiếp ngoài | Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors |
| Âm thanh | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
